Kafka

What you can manage

• Cluster — broker count, controller, cluster ID, version.
• Topics — list, create (with partitions + replication factor), delete.
• Consumer groups — list, inspect protocol, delete.

Credentials

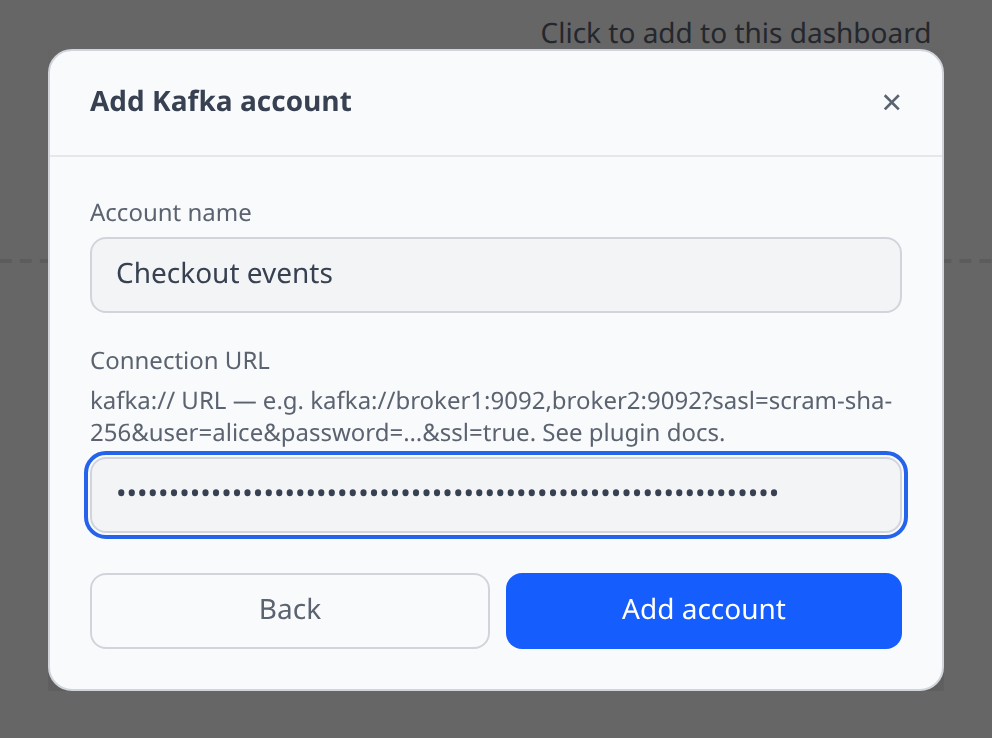

Infrawrench uses a custom kafka:// URL to bundle the bootstrap brokers and authentication into one credential field.

Plaintext (no auth)

kafka://broker1:9092

For multiple brokers, use the brokers= query param since standard URLs can’t carry a comma-separated host:

kafka://placeholder:9092?brokers=b1:9092,b2:9092,b3:9092

SASL / SSL

Supported SASL mechanisms: plain, scram-sha-256, scram-sha-512.

kafka://broker1:9092?sasl=scram-sha-256&user=alice&password=…&ssl=true

Equivalent shorthand — credentials in the URL userinfo, kafkas:// for TLS:

kafkas://alice:secret@broker1:9092?sasl=scram-sha-256

URL-encode special characters in user and password (e.g. @ → %40).

Reference an output

If you’ve added a managed-Kafka resource elsewhere (Aiven, Confluent Cloud, MSK), reference its connection-string output instead of pasting a URL.

Notable flows

• Sidebar lists Topics and Consumer Groups under the cluster — the cluster itself is the top-level entry per account.

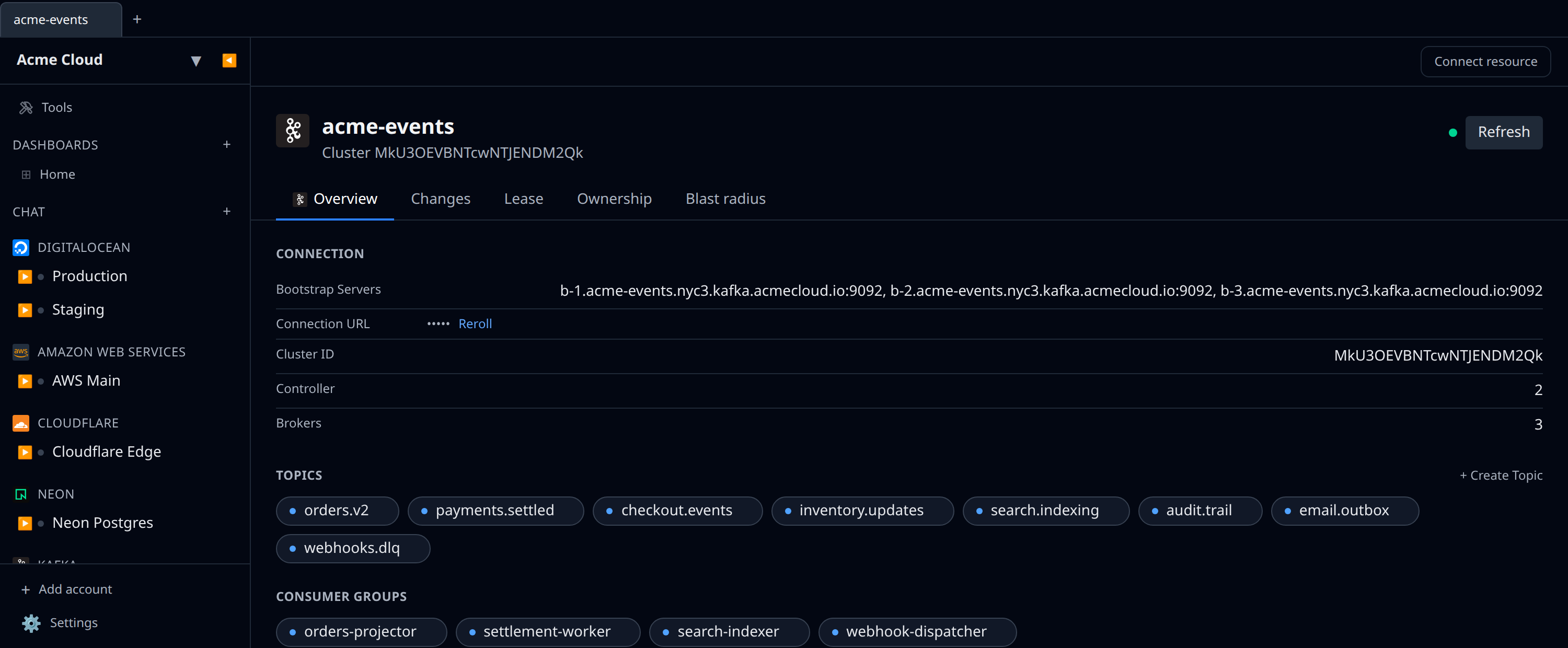

• Create topic from the cluster’s detail view — pick partition count and replication factor.
• Create topic from a peer pane — when Kafka is surfaced as a peer of another resource (e.g. a DigitalOcean Managed Database’s Kafka tab), the Topics group shows a + Create Topic button even when the cluster is empty, so a fresh cluster isn’t a dead-end. Consumer groups have no create button — they form when a consumer subscribes.
• Delete topic / group from the resource’s own detail view.
• Produce a test record on any topic from the Produce tab on its detail page — see Send test messages. The connection’s credentials need produce ACLs on the topic.

Tips & limits

• Internal topics that start with __ (e.g. __consumer_offsets) are hidden from the topic list.
• Replication factor must be ≤ the number of brokers — creation will fail upstream otherwise.
• For private clusters (AWS MSK in a VPC, on-prem brokers), bind the account to a bastion so the host tunnels Kafka traffic through it.
• This plugin uses kafkajs; native-binary clients (librdkafka-backed) are not currently supported.
